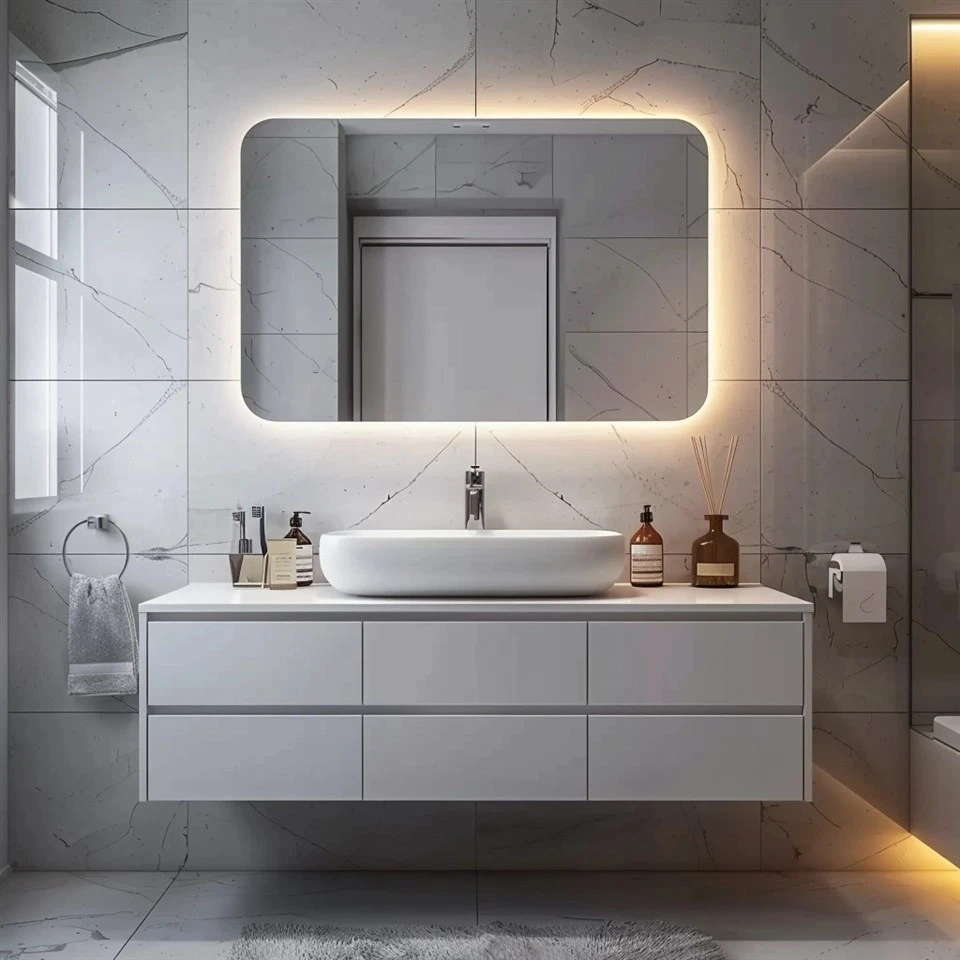

The Anti-Fog LED Bathroom Mirror solves a practical complaint: fogged glass after bathing. A conductive heating film on the rear warms the mirror evenly, holding surface temperature 5-8 degrees above room air so vapor cannot condense. Fog lifts from center outward after 2-3 minutes; the panel clears fully around five minutes. Tuned power density keeps this pace without slow heating or deformation of the coating.
The PET-substrate film carries conductive carbon paste or metal foil at 0.5 mm thickness, nearly invisible on the back. Typical density runs 150-200 W per square meter; an 80 by 100 cm mirror draws roughly 120-160 W for defogging. Testing confirmed this starts clearing in 2-3 minutes while keeping surface temperature under 40 degrees, cool to the touch and gentle on the coating. Hourly use compares with one household bulb.
Lighting and defogging run separately on a two-button panel: light only, defog only, or both. Defogging switches off automatically after 45 minutes, preventing wasted power after a forgotten shower; one more press restarts the cycle, and other timers can be customized. The rear film cannot alter the front reflection.
The defog circuit adds one power feed, so the wall reserves a live and neutral pair alongside the strip supply, both entering the junction box. Without pre-wiring, strip and film share one switched loop, though the functions then lose independent switching; reserved wiring gives the fuller set.
Quality control covers surface inspection before film lamination, eight-hour aging after assembly, and a 100% drawing check before foam-lined carton packing. OEM and ODM run on a 10-piece MOQ with mixed models. The Anti-Fog LED Bathroom Mirror carries CE-LVD certification. Defogging and lighting belong to the two-year electrical warranty; rust or black edges on the glass carry one year.
Product Specifications
|
Parameter |
Specification |
|
Mirror material |
5 mm copper-free silver mirror |
|
Defog method |
PET conductive heating film bonded to the rear |
|
Heating power |
150-200 W per square meter, by size |
|
Response time |
Clearing starts in 2-3 minutes, fully clear in 5 minutes |
|
Timer shutoff |
Automatic switch-off after 45 minutes |
